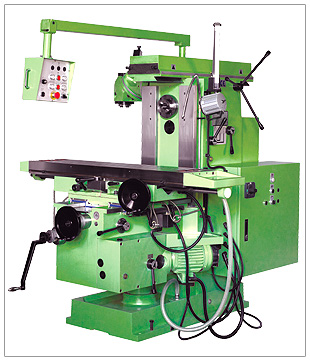

  £»UNIVERSAL MILLING MACHINE


  STANDARD FEATURES:

All gears are harden & ground for horizontal spindle.
Oil lubrication splash bath system for horizontal.
All CE elec. which are with overload safety device.
¡Ó45¢X degrees L+R swivel table.
Swivel control panel.
Cast iron is either ASTM No. 40/meehanite GC-45 or
  DIN GG-40.

......................................................................................................................................................................................................................
SPECIFICATION:
Technical Specifications MODEL S-2500U
TABLE
Table area
Number of "T" shaped slots
Distance between "T" shaped slots
Rotary movement of table in both direction
 1300x300mm
3-16H7
70mm
45¢X
TRAVERSE
Automatic Longitudinal
Automatic cross
Automatic Vertical
Available distance from spindle to overarm		 950mm
380mm
450mm
155mm
SPINDLE (horizontal)
Housing of the taper spindle
Diameter of the main Shaft nose
Milling arbor diameter (*)
Number of speeds of the spindle (R.P.M.)		 ISO-40
88.88mm
27mm
12(50-1700) 50HZ
FEEDS
Longitudinal and cross feeds
Vertical feed		 10-1208mm/min
5-604mm
RAPID TRAVERSE
Longitudinal and cross
Vertical		 1208mm/min
5-604mm
PUISSANCE
V-Belts
Main motor HP
Feed motor HP		 4
5
2.5
COOLING
Cooling-pump HP		 1/8
MOTORIZED OVERARM
Housing of the taper spindle
Number of speeds
Speed range (R.P.M)
Power HP		 ¡Ð
¡Ð
¡Ð
¡Ð
WEIGHT
Maximum weight on table
Net weight
Gross weight with seapacking case
Cubical measure of packing		 500kg
2500kg
2700kg
170x220x220cm


STANDARD ACCESSORIES:
27mm or 1" long horizontal ISO#40 milling arbor.
Horizontal & vertical manual draw-bars.
Coolant pump & coolant system.
Tool box and services tools.		 OPTIONAL ACCESSORIES:
AC auto for over - arm moving device is available.
Ball screws for "X", "Y" axis.
Auto ways lubrication unit.
Chip tray.
Universal dividing head, complete with 3 JAW chuck.
Horizontal & vertical rotary table.
Hydraulic clamping vise 6" or 8".
Power milling vise 6" or 8".
Clamping kit.
Pneumatic power draw bar.
ISO#50 spindle taper.
